The A12000S 12,000LB Brute Series Winch is built to exact specifications to ensure it's reliable in the most extreme conditions. The 12 volt high performance motor is series wound for power and fast line speed. Fully independent and automatic braking ensures safety and reliability while the steel 3 stage planetary gears deliver high efficiency. Multiple control box options including vertical over tie rod, horizontal over tie rod and horizontal over motor. Includes both wired and wireless remote controls.

• 12,000LB Line pull
• Synthetic rope with aluminum Hawse fairlead
• Series wound motor
• 6.0HP 4.4KW 12V DC motor
• Easily operated clutch lever
• IP68 rated to keep out dirt and water
• Includes both wired and wireless remote controls
• 7/16" x 78.7' Synthetic rope length

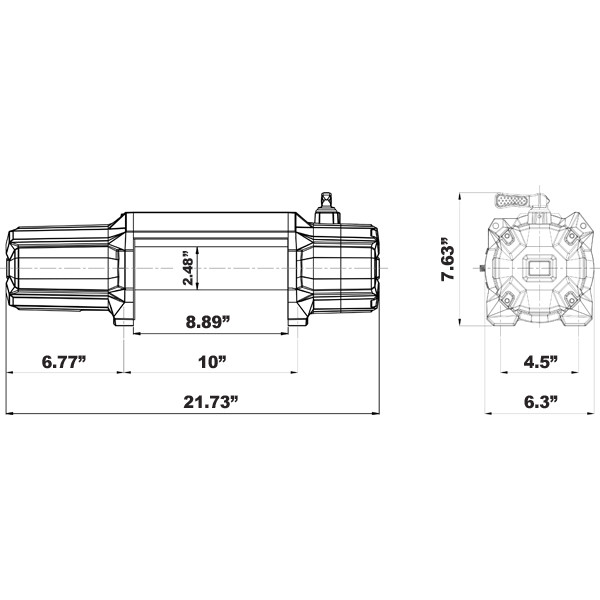

• Dimensions - 21.5" x 6.3" x 7.6"
• Mounting Bolt Pattern - 10" x 4.5"

View the instruction manual
